  1. #31
    Join Date
    Aug 2010
    Location
    Bendigo
    Age
    63
    Posts
    1,726
    Post Thanks / Like

    Default

    Quote Originally Posted by .RC. View Post
    ..... The right one has suffered a bit a bit of grinding damage....
    Beggars can't be choosers

    Joe

  2. # ADS
    Google Adsense Advertisement
    Join Date
    Always
    Location
    Advertising world
    Age
    2010
    Posts
    Many

  3. #32
    Join Date
    Aug 2008
    Location
    near Rockhampton
    Posts
    3,665
    Post Thanks / Like

    Default

    I think the centre height is 5 inches...
    Attached Images Attached Images
    Precision takes time.

  4. #33
    Join Date
    May 2010
    Location
    Lower Lakes SA
    Age
    49
    Posts
    2,548
    Post Thanks / Like

    Default

    That's called "relieved". You should charge extra for that. Saves the next owner doing it.

  5. #34
    Join Date
    Jul 2011
    Location
    Melbourne Australia
    Posts
    914
    Post Thanks / Like

    Default

    Quote Originally Posted by .RC. View Post
    You have to push the table until these holders (the bits with red circles around them in the photo) are exposed then remove them.... One set on either end...... Then lift the table off vertically...
    This one didn’t, we found those blocks, but only one each end, it still wouldn’t lift, I couldn’t see what else could possibly be holding it down. Any way, we ended up sliding it off the end.


    Any way I saw it go off in the truck. It should be home about now. I’ll let Ray tell you the rest.

    Phil.

  6. #35
    Join Date
    Jun 2007
    Location
    sydney
    Age
    55
    Posts
    3,350
    Post Thanks / Like

    Default

    What sort of truck was it.

  7. #36
    Join Date
    Jul 2011
    Location
    Melbourne Australia
    Posts
    914
    Post Thanks / Like

    Default

    A white one.

  8. #37
    Join Date
    Jun 2008
    Location
    Victoria, Australia
    Age
    64
    Posts
    5,444
    Post Thanks / Like

    Default Home Safe

    Well it's home and safely in the workshop, thanks to the efforts of Phil, Stuart and Josh.

    It was a smooth and uneventful move, pretty much every thing went according to plan, which is what you always hope for when moving heavy delicate machinery, This time it was great to see how Phil does things... Thanks Phil and Stuart, your help was greatly appreciated.

    The machine itself is in pretty fair condition, although all the oil caps and wicks are dried out, and a couple of oil caps are painted over. The bearings that the table runs on feel lumpy and gritty, echuca somethings? I haven't had a close look yet. maybe later tonight when it cools down a bit..

    The interesting thing though is...

    This Cincinnati Number 2 has no balls....

    Well it has ball bearings and a chain.

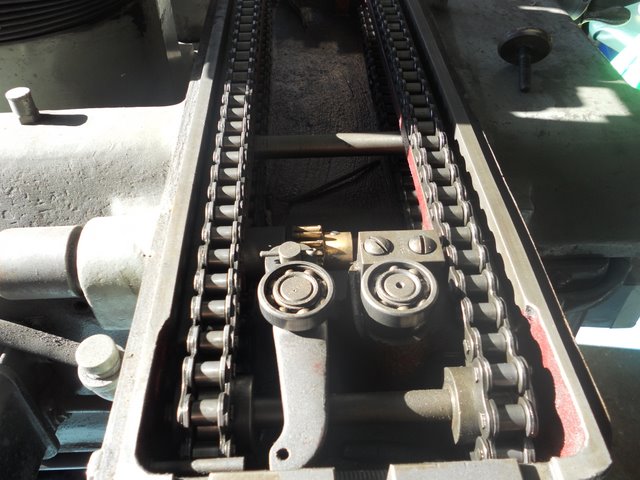

    The table runs against the ball bearings, the one on the right is fixed and the one on the left is spring loaded... beyond that, I'm still figuring it out.

    The motor for the wheel head is inside the main casting.. not on top, no collets, and no idea what the tapers are yet. did come with left and right center however...

    One wheel spindle mounting is missing... that might be a problem to source...

    The work head tapers are huge....

    More pictures later.... thanks again to Phil and Stuart for all the help this morning..

    Regards
    Ray

    PS... It was a white hire 3tonne tray cost $120 for the day plus fuel and citylink. Say $250 all up.

  9. #38
    Join Date
    Aug 2008
    Location
    near Rockhampton
    Posts
    3,665
    Post Thanks / Like

    Default

    The workhead taper will be either MT5 or B&S 12 (I think it is 12, but it is rarer then an honest politician) Oh and 50ISO at the other end..
    Precision takes time.

  10. #39
    Join Date
    Aug 2008
    Location
    near Rockhampton
    Posts
    3,665
    Post Thanks / Like

    Default

    Quote Originally Posted by rayg View Post

    this cincinnati number 2 has no balls....
    it's a eunuch....:d
    Precision takes time.

  11. #40
    Join Date
    Jun 2008
    Location
    Victoria, Australia
    Age
    64
    Posts
    5,444
    Post Thanks / Like

    Default

    Quote Originally Posted by .RC. View Post
    it's a eunuch....:d
    Maybe, but I'm going with Miss Cincinnati....

    Any thoughts on what the wheel spindle taper might be?

    I found these guys linked to from a PM post... as a potential source for grinding wheel arbors... William Sopko and Sons Co. - Precision Wheel Grinding Adapters and Spindle Accessories Manufacturer

    Regards
    Ray

  12. #41
    Join Date
    Jun 2004
    Location
    Kyabram. Vic
    Posts
    728
    Post Thanks / Like

    Default

    What RC says re tapers.

    At least my Elliot No 5 has balls; a whole cluster of them.

    My Cinci No2 T & C manual circa 1950 states precision steel balls separated by a flat bronze cage. Ball tracks made of hardened steel ground in position.

    Motor in base.
    Ken

  13. #42
    Join Date
    Jul 2010
    Location
    Melbourne
    Posts
    7,149
    Post Thanks / Like

    Default

    Quote Originally Posted by RayG View Post
    The table runs against the ball bearings, the one on the right is fixed and the one on the left is spring loaded... beyond that, I'm still figuring it out.
    Hi Guys
    I worked out on the way home that it was those bearings holding the table on. The rack is wider than the way(?) those bearings run on. At least thats my current theory.

    Havent read all the posts yet I'm measuring up the steel for my surface plate.(currently thinking about 60mm dia pipe with 3.6mm wall 1100mm long for the vertical and 50mmSQ 3mm for the horizontals)

    Pictures to follow

    Stuart

  14. #43
    Join Date
    Oct 2008
    Location
    Wimmera
    Age
    41
    Posts
    364
    Post Thanks / Like

    Default

    more photos of the bottom of the table and the chain please ray
    glad to hear its home safe

    cheers
    Harty

  15. #44
    Join Date
    Aug 2008
    Location
    near Rockhampton
    Posts
    3,665
    Post Thanks / Like

    Default

    Quote Originally Posted by RayG View Post
    Maybe, but I'm going with Miss Cincinnati....
    \


    Might have been around the block a few times... Miss might be pushing it.....
    Precision takes time.

  16. #45
    Join Date
    Jul 2011
    Location
    Melbourne Australia
    Posts
    914
    Post Thanks / Like

    Default

    Quote Originally Posted by .RC. View Post
    Might have been around the block a few times... Miss might be pushing it.....
    I’m voting for “Mrs Clayton” It’s true we picked her up, off the side of the road. But she was clean and her intensions were honourable.

    Phil
