    Hi RC

    sounds like we need a show us your tool and cutter grinder thread

    cheers
    Harty

  2. # ADS
    Google Adsense Advertisement
    Join Date
    Always
    Location
    Advertising world
    Age
    2010
    Posts
    Many

  3. #77
    Join Date
    Aug 2008
    Location
    near Rockhampton
    Posts
    3,654
    Post Thanks / Like

    Default

    Here we have the TC grinder accessories I have...

    It includes...

    motorised workhead, dividing plate for workhead, angular adjustment thingie for setting relief on the cutter, centring gauge, diamond dresser, universal vise, plus some spare bits for it, two sets of centres, grinding wheel arbours, extended grinding wheel arbours, an attachment for sharpening form cutters like gear cutters and an internal grinding attachment that is currently disassembled but all the bits for it are not shown in the photo as they are stored away...

    Then I have a air spindle, radius attachment and universal vice for the little TC grinder..
    Attached Images Attached Images
    Precision takes time.

  4. #78
    Join Date
    Jun 2008
    Location
    Victoria, Australia
    Age
    64
    Posts
    5,433
    Post Thanks / Like

    Default

    Hi .RC,

    Very impressive collection, I wish I knew what I was looking at... It will take me a while to figure out what is what...

    What wheels do you mostly use?

    Regards
    Ray

  5. #79
    Join Date
    Aug 2008
    Location
    near Rockhampton
    Posts
    3,654
    Post Thanks / Like

    Default

    Just cup wheels...
    Precision takes time.

  6. #80
    Join Date
    Jun 2008
    Location
    Victoria, Australia
    Age
    64
    Posts
    5,433
    Post Thanks / Like

    Default

    Hi .RC,

    What's the cream coloured thing that looks like a rocket launcher?



    Looks big for an air spindle?

    Regards
    Ray

  7. #81
    Join Date
    Jun 2008
    Location
    Victoria, Australia
    Age
    64
    Posts
    5,433
    Post Thanks / Like

    Default

    Hi .RC,

    I have no idea what this is?



    Regards
    Ray

    Edit... Oh wait is that part of a dog?

  8. #82
    Join Date
    Oct 2008
    Location
    Wimmera
    Age
    41
    Posts
    364
    Post Thanks / Like

    Default

    Quote Originally Posted by RayG View Post
    Hi .RC,

    I have no idea what this is?



    Regards
    Ray

    Edit... Oh wait is that part of a dog?
    its a centering gage Ray

    Cheers
    Harty

  9. #83
    Join Date
    Jun 2008
    Location
    Victoria, Australia
    Age
    64
    Posts
    5,433
    Post Thanks / Like

    Default

    Quote Originally Posted by harty69 View Post
    its a centering gage Ray

    Cheers
    Harty
    Thanks Harty, Ah yes, I've got it.. it goes up and down with the wheel head.

    Still stumped on most of the others though...

    Regards
    Ray

  10. #84
    Join Date
    Oct 2008
    Location
    Wimmera
    Age
    41
    Posts
    364
    Post Thanks / Like

    Default

    Hi Ray

    we have had a scraping course to get us started with the basics
    now we need a tool and cutter course to get the basics of that

    Cheers
    Harty

  11. #85
    Join Date
    Jun 2008
    Location
    Victoria, Australia
    Age
    64
    Posts
    5,433
    Post Thanks / Like

    Default

    Hi Harty,

    I reckon Rocky would be a good place to hold it... pity it's so far from the center of the universe though...

    I did find a lot of Walter setup documentation on-line, that goes into a fair amount of detail on angles and setup procedures. There is a lot of detail to learn.

    Have you got a list of what you want from sopko?

    Regards
    Ray

  12. #86
    Join Date
    Oct 2008
    Location
    Wimmera
    Age
    41
    Posts
    364
    Post Thanks / Like

    Default

    Hi Ray

    No list
    been looking and I need to do some more research before i jump in and order the wrong parts so dont wait for me

    cheers
    Harty

  13. #87
    Join Date
    Aug 2008
    Location
    near Rockhampton
    Posts
    3,654
    Post Thanks / Like

    Default

    Quote Originally Posted by RayG View Post
    Hi .RC,

    What's the cream coloured thing that looks like a rocket launcher?



    Looks big for an air spindle?

    Regards
    Ray
    That is the air spindle.... it is not that big..It takes 5C collets...

    This is what you need

    Tool and Cutter Grinder CD, Model Engineer? Buy It Now | eBay

    I have a copy, it is quite good...
    Precision takes time.

  14. #88
    Join Date
    Jun 2008
    Location
    Victoria, Australia
    Age
    64
    Posts
    5,433
    Post Thanks / Like

    Default

    Hi .RC,

    Thanks for that I've ordered the cd. Looks like just what I need.

    I'm currently just cleaning up around the wheel head, (while waiting for bearings to arrive) and getting paint off the oil caps that were painted over, and notice that a lot of the reference surfaces have been painted over as well, so I'm gradually getting the paint off those as well.

    Do you have a picture of your wheel head?

    Regards
    Ray

  15. #89
    Join Date
    Jun 2008
    Location
    Victoria, Australia
    Age
    64
    Posts
    5,433
    Post Thanks / Like

    Default

    Well, it''s almost back together...

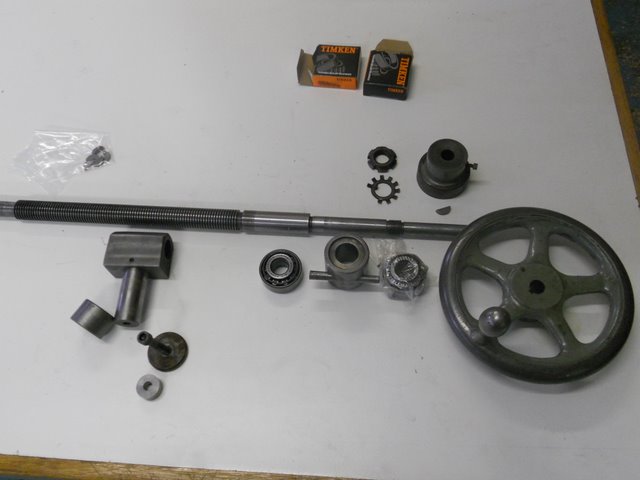

    Here is the cross slide screw arrangement, for future reference. New timken tapered roller bearings.

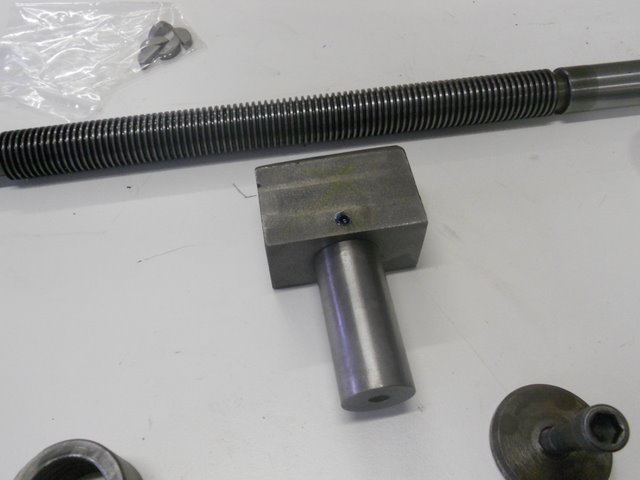

    The repaired pin on the cross slide nut.. a bit of thread lock on the grub screws. The pin is a nice tight press fit into the nut.


    The saddle is back on, the screw is fitted after the saddle goes back.

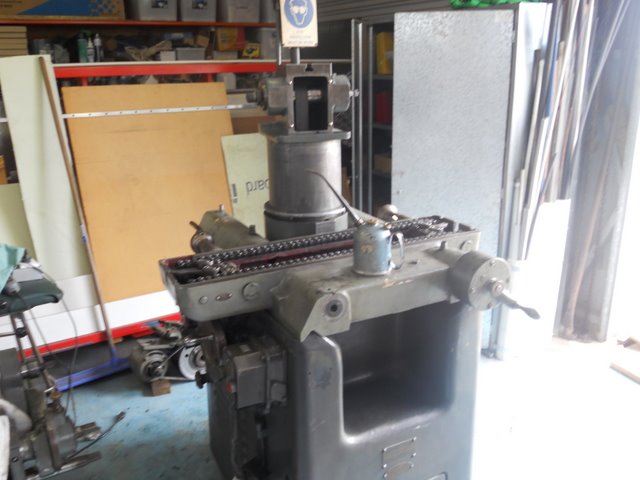

    New bearings for the table guides... Phil, I measured the rollers, and the front rollers were 11.603 +-0.001 and the back rollers were 11.711+-0.001 I didn't check every single roller, just about 10 or so around the chain.. seemed pretty consistent.

    Can't think why the front and back would be different..? Also started filling the base of the table with oil. There are oil wicks going down to the cross slide ways from the table reservoir.

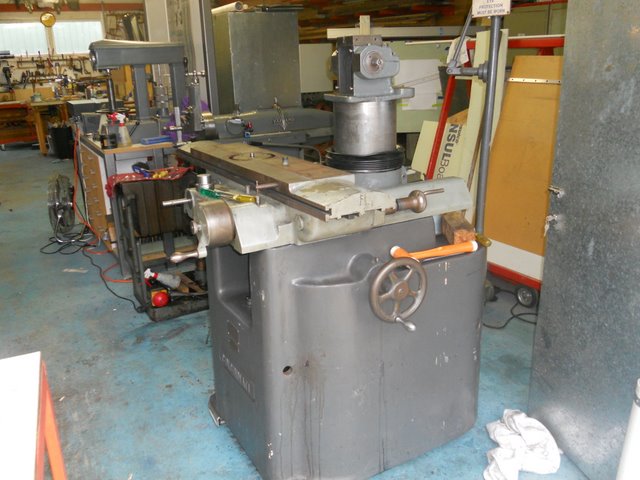

    The table is back on, and ready for a clean up with scotch brite.


    Next job is a proper clean up.. all the handles etc..

    Regards
    Ray

  16. #90
    Join Date
    Jun 2008
    Location
    Victoria, Australia
    Age
    64
    Posts
    5,433
    Post Thanks / Like

    Default

    Here's a safety tip for anyone restoring old machine tools...

    I pulled the spindle motor and the workhead motor out to get my SIL to rewire them for delta. As soon as I touched the wires the insulation crumbled to dust.

    If I had powered it up.. zap!...

    Lucky.

    Regards
    Ray
